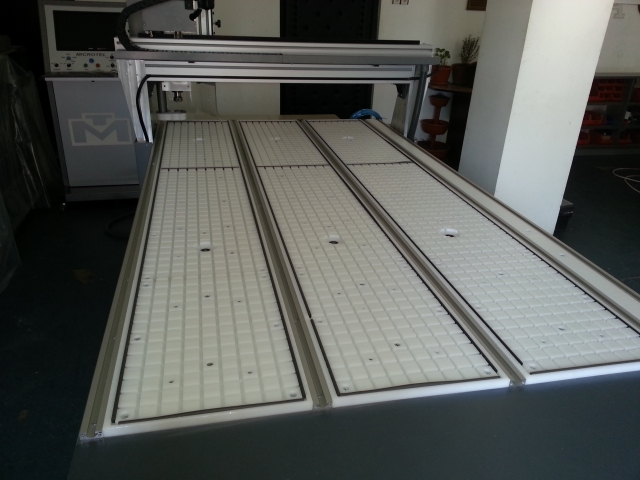

CNC Router 1532
Manufacturer:
Microtel
Technical specification of CNC Router 1532
| Technical data | Dim. | Value |
|---|---|---|
| Working dimensions | mm | 1500x3200 |
| Spindles type and power | kW | ELTE - 2.0 -12,5 kW |
| Spindle speeds | min-1 | 3000-18000 variable speed |
| Spindle tool change | manual, semiautomatic or automatic | |
| Work speed, maximal | mm/min | 25000 |
| Operation on vertical axis | mm | 100-300 |
| X, Y motors for movement in X,Y directions | type | servo motors |
| Z axis transmission type | ball-screw mechanism | |
| X, Y axes transmission type | rail mechanism |
Standard equipment
Sensor for measuring the tool length; Software for automatic generation of work program, CE certificate, Electrical safety certifcate, Dust and noise certificates, tool kit, spare parts, user manual, 12 month warranty, min. 10 years after warranty services
Optional equipment:
Aluminium work table surface, Aspiration system, Vacuum system, Different working dimensions and vertical axis operations.
