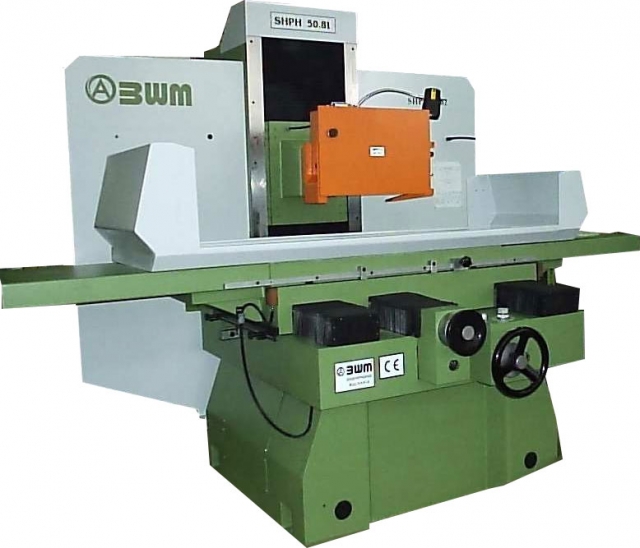

ShPH 40.61
Grinding machine ShPH 40.61 can be manufactured with a class of accuracy B and A according to the standards GOST 273-90 (ISO 1986-85), GOST 13135-90 (ISO 1985-85, ISO 1986-85, ISO 4703-84)
Manufacturer:
Grinders Producing Plant JSC
Technical specification of ShPH 40.61
|
Technical data |
Dim. |
Value |
|
|
|
|
|
Work table size |
mm |
400x600 |
|
Maximum height of the detail grinded /when the disk is new/ |
mm |
470 |
|
Maximal work piece size |
mm | 630x450x510 |
|
Grinding disk: |
||
|
- sizes |
mm |
450x63x127 |
| - peripheral speed | m/sec | 45 |
|
Range of the worktable longitudinal speed |
m/min |
1.5-2.5 |
|
Grinding support:minimum l vertical shift at manual mode |
mm |
0.001 |
|
Range of the vertical automatic feeds |
mm |
0.001-0.045 |
|
Range of the surfacing traverse of the cross-shaped worktable: |
||
|
- broken |
mm |
0.1-15 |
| - unbroken | mm | 0.25-1.3 |
| Speed at fast running: | ||
|
- vertical |
m/min |
0.24 |
|
- transverse |
m/min |
1.6 |
| Max. longitudinal travel | mm | 710 |
|
Max. transversal shift |
mm |
445 |
|
Main motor power |
kW |
7.5 |
|
Control type |
|
NC controller |
|
Weight |
kg |
5100 |
Standard equipment
Sharpening tool, Cooling cleaning and lubricating device, Set of spare fast-wearing parts and elements for 5000 hours, Set of mechanic and metalworking tools, Electromagnetic table with fixing elements, Stand for static balancing of grinding wheel, Tool for balancing grinding wheel
