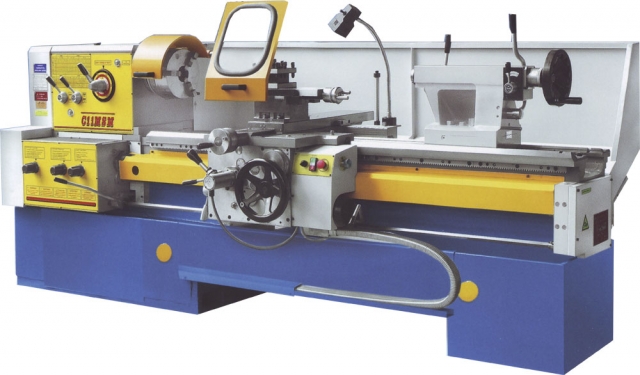

C11MS
Technical specification of C11MS
| Technical data | Dim. | Value |
|---|---|---|
| Height of centers | mm | 250 |
| Swing diameter over bed | mm | 510 |
| Swing diameter over carriage | mm | 290 |
| Swing diameter over gap in bed | mm | 690 |
| Width of ways | mm | 400 |
| Distance between centers | mm | 1000, 1500, 2000, 3000, 4000, 5000 |
| Bar material | mm | 60 |
| Spindle | ||
| Spindle nose DIN 55027 | № | 8 |
| Spindle nose taper | mm | 62 |
| Spindle bore | metric | 80 |
| Feed | ||
| Feed quantity | pcs. | 96 |
| Longitudinal feed range | mm/rev | 0,04 - 13,3 |
| Transverse feed range | mm/rev | 0,02 - 6,68 |
| Toolpost | ||
| Toolpost shank size | mm | 25x25 |
| Threads | ||
| Thread quantity | pcs. | 64 |
| Metric | mm | 0,5-120 |
| Imperial | Tpi | 0,25-60 |
| Module | M | 0,125-30 |
| Diameter | vit / inch | 1-240 |
| Carriage | ||
| Cross slide stroke | mm | 360 |
| Top slide stroke | mm | 135 |
| Tailstock | ||
| Tailstock diameter | mm | 90 |
| Tailstock taper | KM | 5 |
| Tailstock travel | mm | 200 |
| Motor | ||
| Number of gears of main motor | pcs. | 15 |
| Range of motor revolutions | rev / min | 16-2000 |
| Motor power | kW | 7,5, 11 |
| Rapid traverse motor power | kW | 0,37 |
| Coolant pump motor power | kW | 0,18 |
| Weight | ||
| For DBC 1000 | kg. | 2880 |
| For DBC 1500 | kg. | 2960 |
| For DBC 2000 | kg. | 3040 |
| For DBC 3000 | kg. | 3810 |
| For DBC 4000 | kg. | 4580 |
| For DBC 5000 | kg. | 4740 |
| Size | ||
| Length for DBC 1000, 1500, 2000, 3000, 4000, 5000 | mm | 2650, 3150, 3650, 4650, 5650, 6650 |
| Width | mm | 1425 |
| Height | mm | 1240 |
Standard equipment
Main drive motor 7,5 KW, Electrical equipment, Cooling system with pump, Lighting, Rapid traverse, Gap in bed, Monolith bed, 250mm. flange, Back cover along lathe, 3-jaw chuck cover, Toolpost cover, Cog-belt system, Set of belts, Spare cogwheel, Bolts and fittings for leveling, Spindle dead center, Reduction sleeve for spindle, 4-positional toolpost, Fast-screwing tailpost, Reductor for tailpost ram, Electrodynamic brake, Case for accessories, Wooden pallet with polyethylene cover packaging, Users manual
